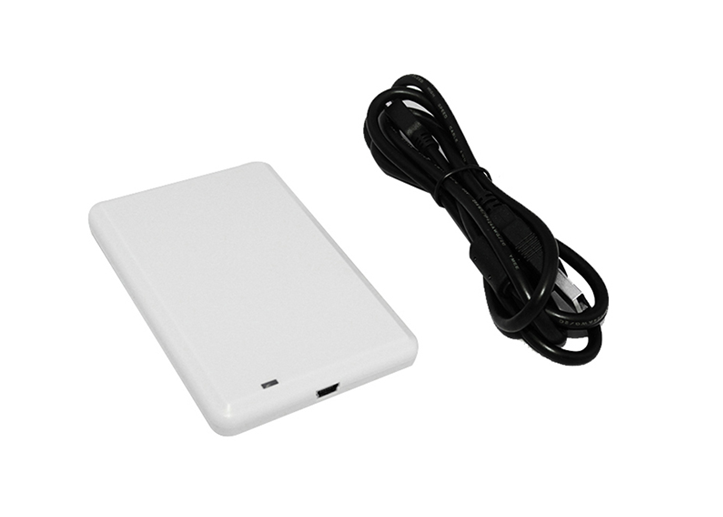

Name: UHF UHF reader (USB HID)

Model: jrd-613

Size: 105 x 70 x 11mm

brief introduction

Jrd-613 is a high-performance UHF band iso18000-6c (EPC C1G2) protocol electronic tag reader. It is designed with independent intellectual property rights and combined with a proprietary and efficient electronic tag collision processing algorithm. It can maintain a high reading rate and realize the rapid reading and writing of electronic tags. It can be widely used in logistics, personal identity recognition, intelligent parking lot, access control system, etc Anti counterfeiting system and production process control and other radio frequency identification (RFID) systems.

Standard products: one jrd-613, one USB cable (1.5m).

Product features

1. Independent intellectual property design;

2. Fully support the electronic tags conforming to UHF EPC Gen2 (iso18000-6c) protocol;

Advanced tag collision processing algorithm, high reading rate;

4. Working frequency FCC 902-928mhz, CE 865-868mhz (can be adjusted according to the requirements of different countries or regions)

5. It works in FHSS or fixed frequency transmission mode;

6 output power: maximum 17dbm (adjustable);

7 built in transceiver antenna, reading distance < 400mm, writing distance < 200mm

8 USB interface power, no external power supply;

9 support USB2.0 interface, virtual serial port working mode, USB driverless mode and USB driverless simulation keyboard mode are optional;

The output format and parameters can be customized under the mode of simulation keyboard;

11. WiFi, Bluetooth 4.0 and Lora interfaces can be customized.

12 customizable simultaneous reading ID / IC card
